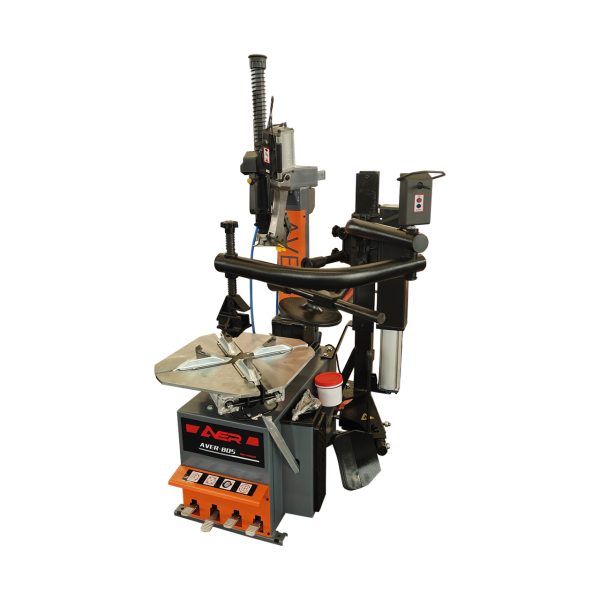

Fully Automatic / Automatic disassembly head / Tile Back Tire Changer with Auxiliary Arm

Model: Aver-805

Categories Products, Tire Changers Tag 10-24(3000kg)

Description

This automatic disassembly head device tire changer considers a best quality copper motor with advantages of fast heat dissipation, low loss, and high power. Upgraded to an automatic disassembly head based on Aver-803, which is more labor-saving and convenient, Maximize productivity and reduce the chance of wheel damage.

From breaking even the most stubborn beads to quickly and easily mounting a wide variety of tire sizes and styles, the Aver-805 has the features you need to get the job done right. At the same time, it greatly improves your work efficiency. The on floor bead breaker is operated by an ergonomically located foot placed behind a guard to prevent accidental operation

Features

• Use a thicker hexagonal bar with S41 for better strength and to reduce deformation during tire removal.
• The working disc air clamp has a protective cover, providing more comprehensive protection for the tires and wheels.
• Equipped with a robotic arm, it saves time and effort in disassembling and assembling hard walled flat tires, making the operation simple and fast.
• The claw is made of precision cast steel material, which is sturdy and durable.
• The robotic arm adopts a set form, with polymer plastic blocks as wear-resistant sliders inside, ensuring smooth and comfortable operation of the robotic arm.
• The structural design is novel and elegant, and it is easy and flexible to use.
• The new flipping tire head structure eliminates the need for pry bars during operation and is equipped with plastic protective pads to double the protection of the wheel rims from damage.
• Universal shovel, more suitable for tire scraping operation.
• Iron stamped foot pedals, durable for life (aluminum foot pedals can be optionally selected).
• Adjust the position of the small boat to change the range of clamping the wheel rim.
• Configure a vertical inflatable meter tool box, which is practical, beautiful, and atmospheric.
• Pneumatic lifting with hexagonal bars saves time and effort in operation.

Specification

Product Name	Fully Automatic Tire Changer
Outside clamping	10"-20"
Inside clamping	13"-24"
Wheel diameter	41"
Wheel width	15"
Bead breaker force	3000kg
Working pressure	0.8-1Mpa
Working disc speed	7rpm
Power	1.1kw/0.75kw
Power supply	220v(Optional 110v/240v/380v)
Motor power	1.5hp
Working noise	＜70dB（A）
