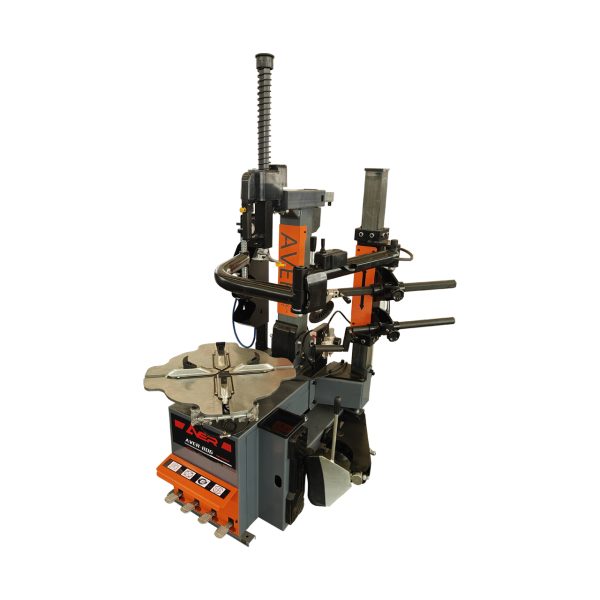

Fully Automatic / Upgraded Version Tilt Back Tire Changer With Dual Pressure Wheel Assist Arm

Model: Aver-806

Categories Products, Tire Changers Tag 10-24(3000kg)

Description

Experience the perfect fusion of efficiency and convenience with our Upgraded Version Tilt Back Tire Changer with Auxiliary Arm. This tire changing machine is composed of the highest quality copper motor, which has the advantages of fast heat dissipation, low loss, and high power. At the same time, we have upgraded the classic Aver-803 disassembly design from a large disassembly plate to a pressure wheel disassembly design, which is more sturdy in quality and perfectly adapts to the current high-strength explosion-proof tires. Cooperating with the rotating process of dismantling tires on the turntable can better prevent the opportunity for wheel damage.

Each upgrade and modification is aimed at ensuring product stability and maximizing productivity, while reducing the chance of wheel damage.

Features

• Use a thicker hexagonal bar with S41 for better strength and to reduce deformation during tire removal.
• The working disc air clamp has a protective cover, providing more comprehensive protection for the tires and wheels.
• Equipped with a robotic arm, it saves time and effort in disassembling and assembling hard walled flat tires, making the operation simple and fast.
• The claw is made of precision cast steel material, which is sturdy and durable.
• The robotic arm adopts a set form, with polymer plastic blocks as wear-resistant sliders inside, ensuring smooth and comfortable operation of the robotic arm.
• The structural design is novel and elegant, and it is easy and flexible to use.
• The new flipping tire head structure eliminates the need for pry bars during operation and is equipped with plastic protective pads to double the protection of the wheel rims from damage.
• Universal shovel, more suitable for tire scraping operation.
• Iron stamped foot pedals, durable for life (aluminum foot pedals can be optionally selected).
• Adjust the position of the small boat to change the range of clamping the wheel rim.
• Configure a vertical inflatable meter tool box, which is practical, beautiful, and atmospheric.
• Pneumatic lifting with hexagonal bars saves time and effort in operation.

Specification

Product Name	Fully Automatic Tire Changer
Outside clamping	10"-20"
Inside clamping	13"-24"
Wheel diameter	41"
Wheel width	15"
Bead breaker force	3000kg
Working pressure	0.8-1Mpa
Working disc speed	7rpm
Power	1.1kw/0.75kw
Power supply	220v(Optional 110v/240v/380v)
Motor power	1.5hp
Working noise	＜70dB（A）
