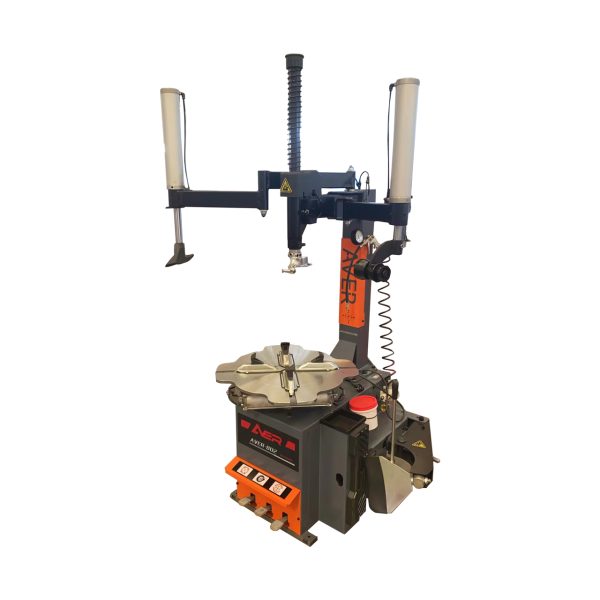

Semi-Automatic / Tire Changer with Double Assist Arm

Model: Aver-802

Categories Products, Tire Changers Tag 10-24(2500kg)

Description

The Aver-802 is a semi-automatic tyre changer capable of handling run-flat tyres on rim sizes up to 24 inches. It retains many of the space saving aspects of Aver-801, but the addition of double assist arms makes this a clear contender in the field of entry level run-flat tyre changers.

It has an ergonomic swing arm design with a 2-point assist arm incorporated to allow fast and efficient tyre changing in small high-volume garages and or main dealerships. With 10 plus years as a brand within the automotive servicing industry you can rest assured that the Aver-802 semi-automatic tyre changer can keep up with the ever-changing tyre market. The Innovative pneumatic locking for the vertical column and the 2-point assist arm will allow you to tackle a variety of tyres including those stubborn low-profile tyres that are becoming standard. ,Our Aver tyre changing machine is provided with a 12 month parts only warranty as standard.

Features

• Adjust the position of the small boat to change the range of clamping the wheel rim.
• The automatic centering four claw motion structure on the turntable is a connecting rod structure with synchronous performance, and it can self center when clamped from the outside to the inside.
• The design of the one-time forming machine structure for the mobile card holder ensures that it is not easily deformed.
• The work turntable has synchronous centering and fine adjustment functions, making tire disassembly and assembly more streamlined
• When the machine is running, the noise is low.
• The tools for disassembling and assembling work heads, clamps, and tire pressure shovels that come into contact with tires are equipped with protective covers and pads to ensure that the wheel rims are not damaged.
• The body is dignified, the board is thick, and the rigidity is super strong.
• Wanxiang shovel is more suitable for tire scraping operation.
• Iron stamped foot pedals, durable for life (optional aluminum foot pedals).
• Equipped with left and right auxiliary arms, tire disassembly is more flexible and the operation is smoother.

Specification

Product Name	Semi-Automatic Tire Changer
Outside clamping	10"-20"
Inside clamping	13"-24"
Wheel diameter	41"
Wheel width	15"
Bead breaker force	2500kg
Working pressure	0.8-1Mpa
Working disc speed	7rpm
Power	1.1kw/0.75kw
Power supply	220v(Optional 110v/240v/380v)
Motor power	1.5hp
Working noise	＜70dB（A）
