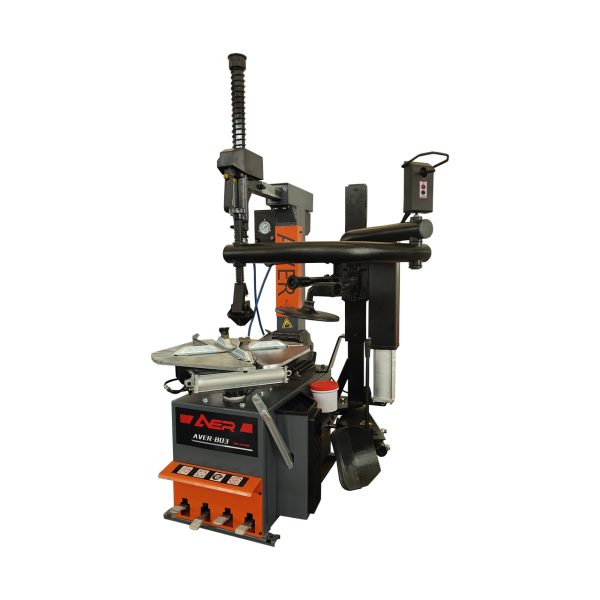

Fully Automatic / Tile Back Car Tire Changer with Auxiliary Arm

  • Download Catalog

Model: Aver-803

Categories , Tag
Facebook
LinkedIn
VK
Twitter

Description

            Experience the perfect blend of efficiency and convenience with our Aver Tilt-Back Car Tire Changer. This tire changer consists of a best quality copper motor with advantages of faster heat dissipation, low loss, and high power. Our Aver-803 also features it’s 5 auxiliary pneumatic lever arm and a one lifting slide design with fine-tuning to ensure smooth lifting and stability. Maximize productivity and reduce the chance of wheel damage.

           From breaking even the most stubborn beads to quickly and easily mounting a wide variety of tire sizes and styles, the Aver-803 has the features you need to get the job done right. The on-floor bead breaker is operated by an ergonomically located pedal placed behind a guard to prevent accidental operation.

Features

• Thickened hexagonal bars with S41s provide better strength and reduce deformation during tire removal.
• The working disc claw is equipped with a protective cover, providing more comprehensive protection for the tire and wheel rim.
• Equipped with a robotic arm, it saves time and effort in disassembling and assembling hard walled flat tires, making the operation simple and fast.
• The claw is made of precision cast steel material, which is sturdy and durable.
• Wanxiang shovel is more suitable for tire scraping operation.
• Configure a vertical inflatable meter tool box, practical, beautiful, and atmospheric.
• The body is dignified, the board is thick, and the rigidity is super strong.
• Iron stamped foot pedals, durable for life (optional aluminum foot pedals).
• Adjust the position of the small boat to change the range of the loading wheel rim.

Specification

Product Name Fully Automatic Tire Changer
Outside clamping 10"-20"
Inside clamping 13"-24"
Wheel diameter 41"
Wheel width 15"
Bead breaker force 3000kg
Working pressure 0.8-1Mpa
Working disc speed 7rpm
Power 1.1kw/0.75kw
Power supply 220v(Optional 110v/240v/380v)
Motor power 1.5hp
Working noise ＜70dB（A）
